List of Machines & Specifications

Image Category S.No Machine Specification

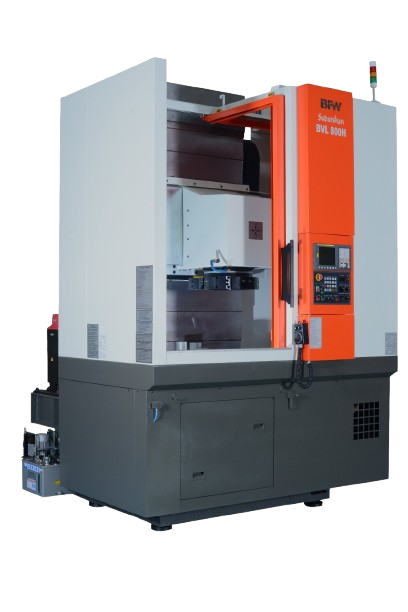

VTL 1 BFW SUDARSHAN BVL 800H CNC VTL
Chuck Dia Swing Max Working Height Max Turning Dia
630 mm 930 mm 800 mm 800 mm
2 BFW SUDARSHAN BVL 700H CNC VTL
Chuck Dia Swing Max Working Height Max Turning Dia
530 mm 800 mm 700 mm 700 mm
3 BFW SUDARSHAN BVL 700H CNC VTL
Chuck Dia Swing Max Working Height Max Turning Dia
530 mm 800 mm 700 mm 700 mm
4 BFW BVL 800H CNC VTL
Chuck Dia Swing Max Working Height Max Turning Dia
630 mm 930 mm 800 mm 800 mm
VMC 5 BFW CHAKRA BMV 60 VMC
Table Traverse X axis Y axis Z axis
1250 x 600 1050 mm 610 mm 610 mm
6 BFW BMV 50 TWIN PALLET VMC
Table Traverse X axis Y axis Z axis
800 x 475 X 2 NUMBERS 800 mm 510 mm 510 mm
7 FEELER VMP 32A VMC
Table Traverse X axis Y axis Z axis
950 x 520 820 mm 520 mm 505 mm

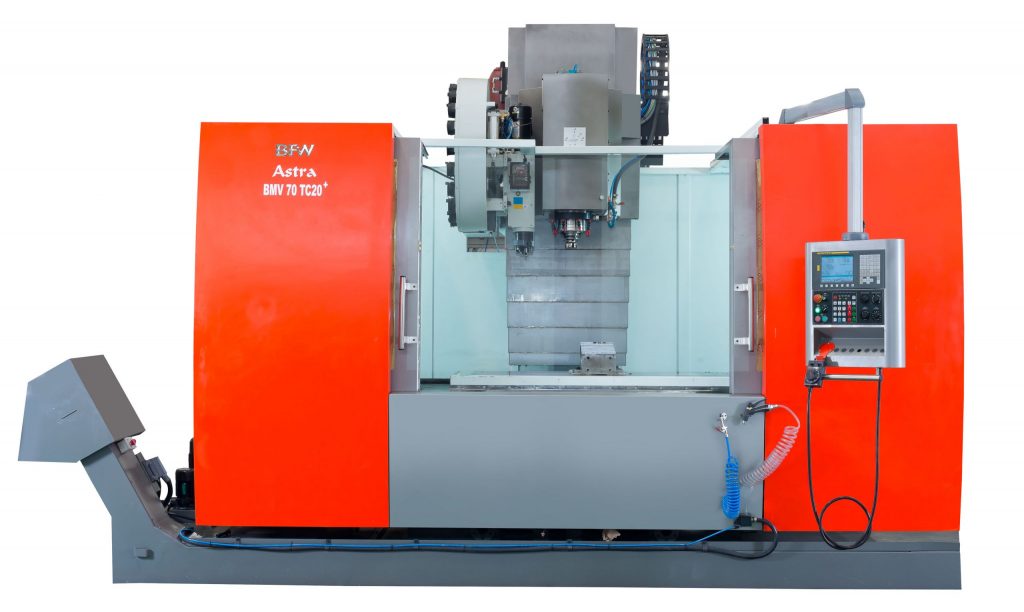

8 BFW CHAKRA BMV 70 VMC
Table Traverse X axis Y axis Z axis
1700 x 700 1650 mm 850 mm 850 mm
Turning Center 9 BFW Vortex BTC 2050 Turning center
Chuck Dia Swing Max Turning Length Max Turning Dia
250 mm 500 mm 500 mm 300 mm

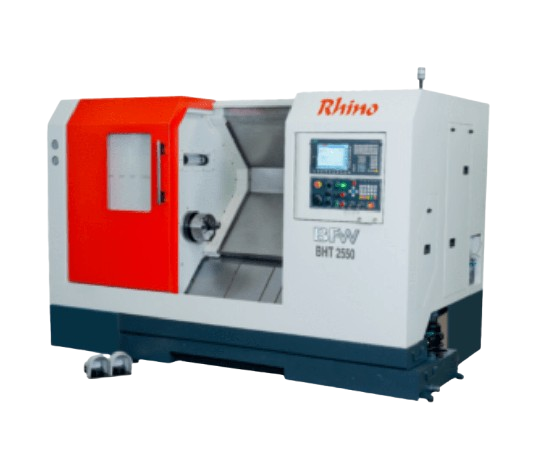

10 BFW RHINO BHT 2550 Turning center
Chuck Dia Swing Max Turning Length Max Turning Dia
300 mm 550 mm 500 mm 380mm
11 BFW RHINO BHT 2550 Turning center
Chuck Dia Swing Max Turning Length Max Turning Dia
300 mm 550 mm 500 mm 380mm
12 BFW RHINO BHT 2570 Turning center
Chuck Dia Swing Max Turning Length Max Turning Dia
300 mm 550 mm 700 mm 380mm

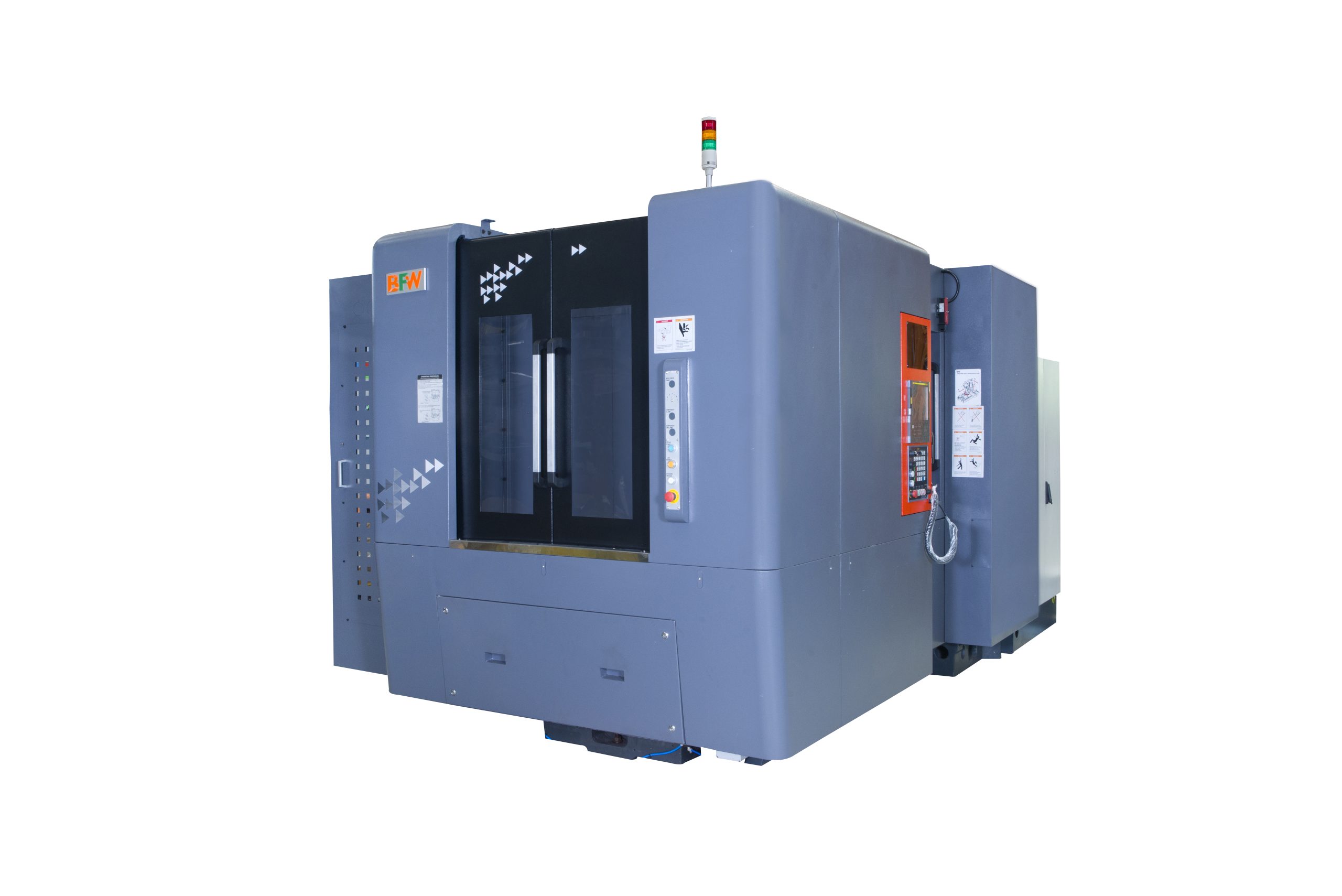

HMC 13 BFW PRIMA PRO 55 HMC
Table Traverse X axis Y axis Z axis
630 x 500 X 2 NUMBERS 800 mm 700 mm 800 mm
14 GRAVOTECH Marking Machine 120 x 80 mm marking area
Number, Logo and QR compatible Dot pin marking

Inspection

S.No Image Machine Specification

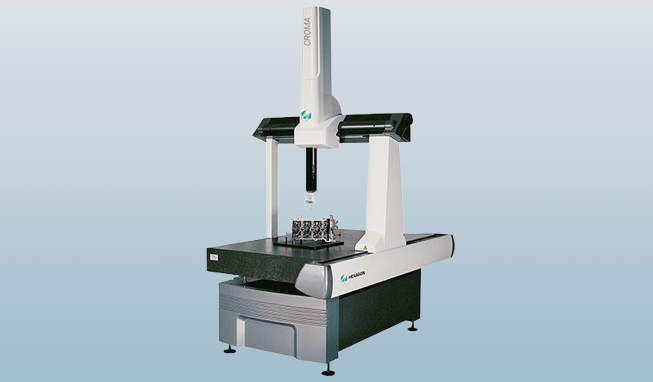

1 BROWN AND SHARPE CROMA 8.10.6
CNC CMM		 Probe head make– Renishaw (Motorized)
Probe head model – PH10m
Minimum indexing steps– 7.5 deg
Stroke X – 800 mm
Y – 1200 mm
Z – 600 mm
2 TRIMOS 2D HEIGHT GAUGE V7 Standard Measuring range – 711 mm
Measuring range with extension – 1023 mm
3 BLUM NOVOTEST PROBE
Installed in VMC		 Probe head – Blum
Model - TC 50 Multi directional probe head for inspection in machine
4 Mitutoyo Surface Roughness Tester Model - SJ – 210
